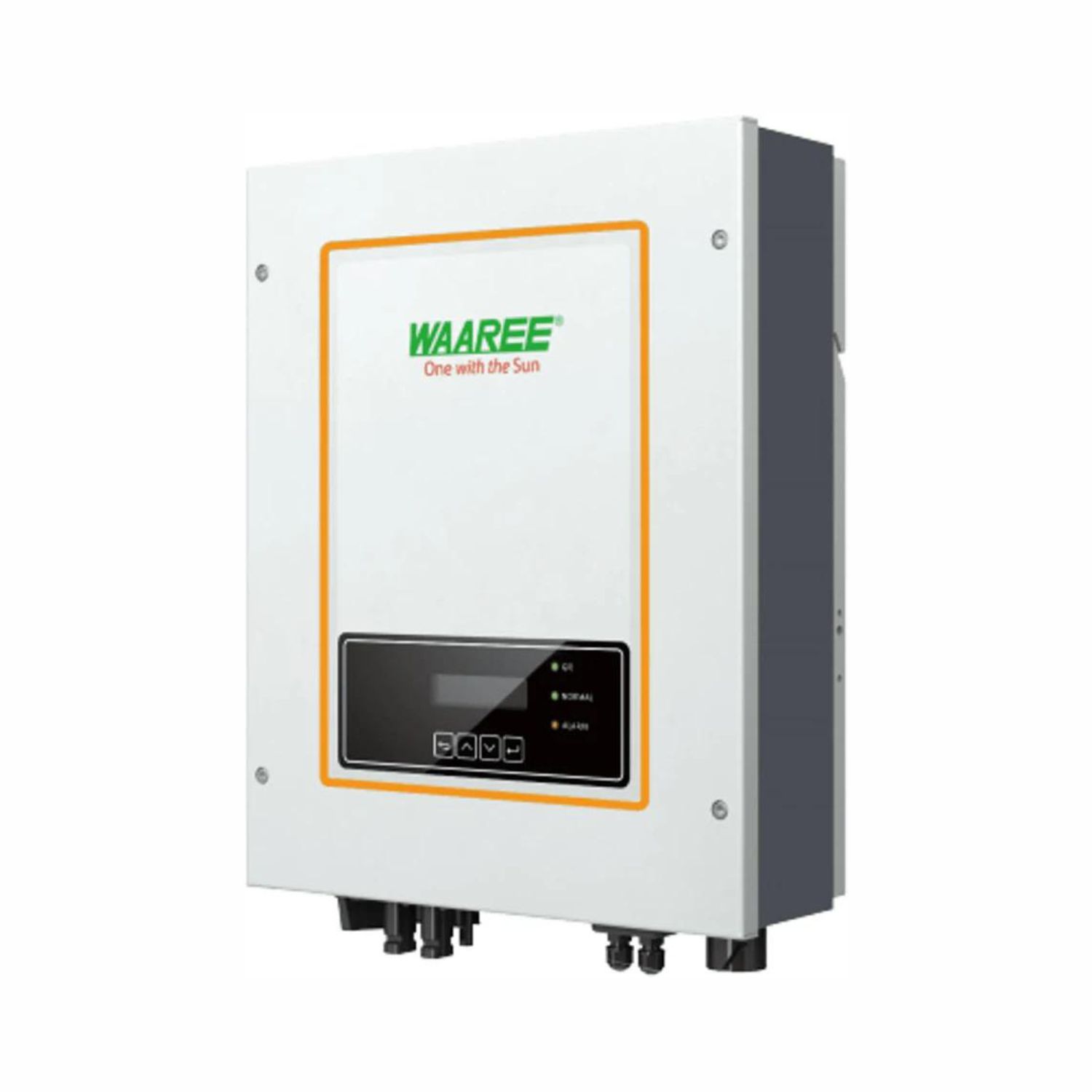

Technical Specifications (W1-5K-G3 Model)

• Max. Efficiency: 97.5% – 97.8%
• Input (DC): Max 600V input with a start-up voltage of 120V.
• MPPT Range: Wide range of 90V – 580V with dual MPPT trackers.
• Output (AC): Nominal output of 5000W with a max output current of 23.9A.
• Protection: Integrated Type II Surge Protection (SPD) on both AC and DC sides, plus IP65
  weatherproofing.
• Communication: Supports Wi-Fi, GPRS, and RS485 for real-time remote monitoring via the Waaree
  app.
• Operating Temp: Rated for performance between -25°C to 60°C, optimized for Indian climatic
  conditions.
