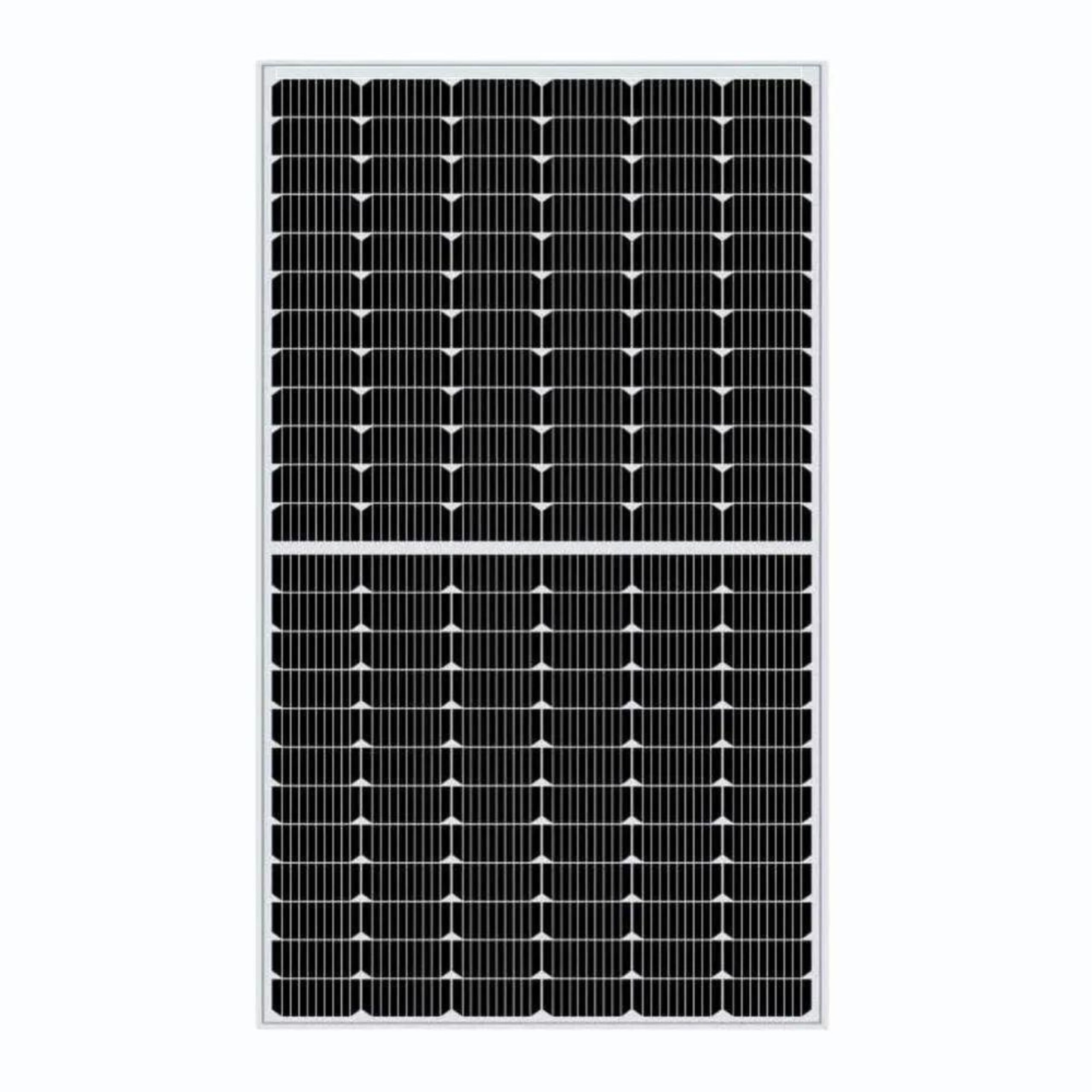

Technical Specifications (Premier Energies 545W/550W)

Feature Specification

• System Capacity: 5 kWp (Kilowatt peak)
• Module Type: Mono PERC Half-Cut / Bifacial
• Individual Panel Wattage: 540W – 550W
• Module Efficiency: Up to 21.3%
• Open Circuit Voltage (Voc): ~49.60 V
• Short Circuit Current (Isc): ~13.86 A
• Dimensions: 2279 mm x 1134 mm x 35 mm
• Weight: ~28.5 kg
• Protection: IP68 rated Junction Box with 3 bypass diodes
• Warranty: 12-year product warranty; 25-year performance warranty
