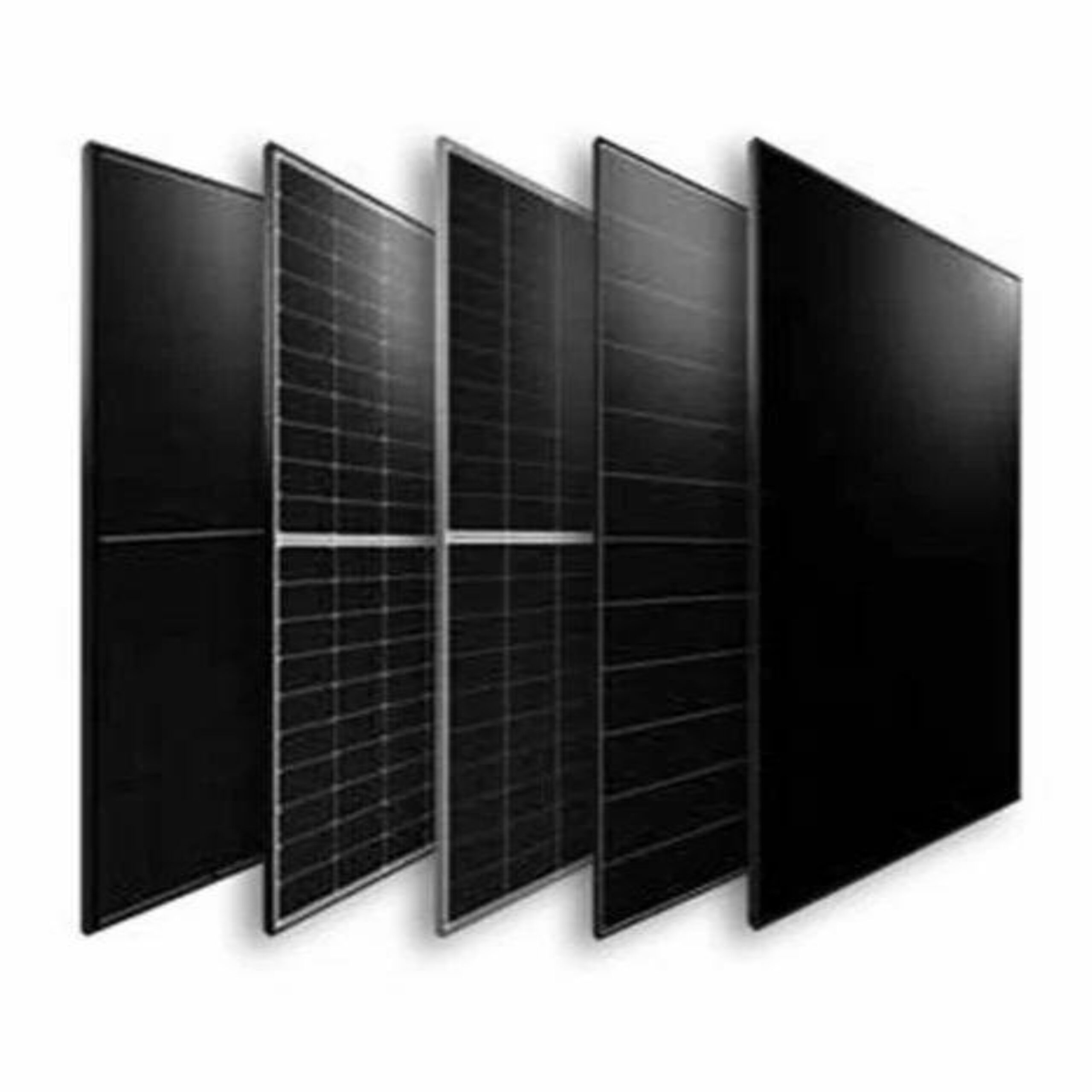

Technical Specifications (V-Guard 545W Mono PERC)
Feature Specification
System Capacity 5 kWp (Kilowatt peak)
Module Type Monocrystalline PERC (144 Half-Cut Cells)
Individual Panel Wattage 545W
Module Efficiency Approximately 21.1%
Max Power Voltage (Vmp) ~41.80 V
Max Power Current (Imp) ~13.04 A
Dimensions ~2278 mm × 1134 mm × 35 mm
Weight ~28.5 kg
Protection IP68 Rated Junction Box
Certifications BIS Approved, MNRE Compliant
