Technical Specifications (Rayzon 545W Series)

Feature Specification

• Individual Panel Wattage: 545Wp (Watts peak)

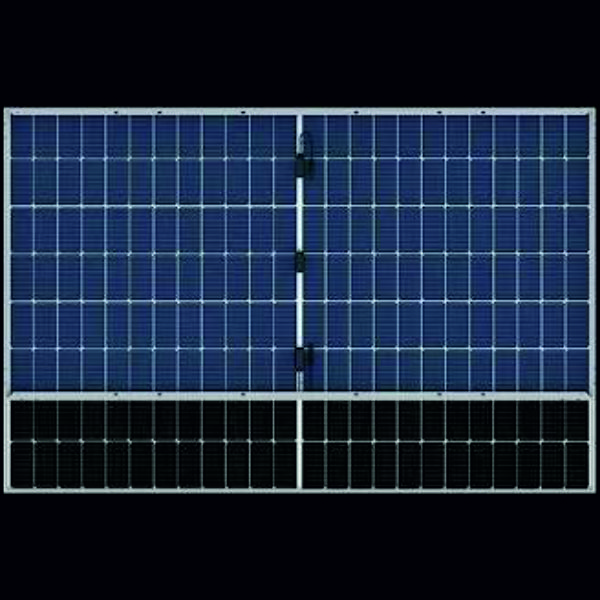

• Module Type: Mono PERC Half-Cut / Bifacial Glass-to-Glass
• Number of Cells: 144 Cells
• Module Efficiency: Approximately 20.9% – 21.3%
• System Voltage: Max 1500V DC
• Operating Temperature: -40°C to +85°C
• Front Glass: 3.2mm Toughened / AR Coated Glass
• Frame: Anodized Aluminum Alloy
• Protection: IP68 Rated Junction Box (3 Bypass Diodes)
